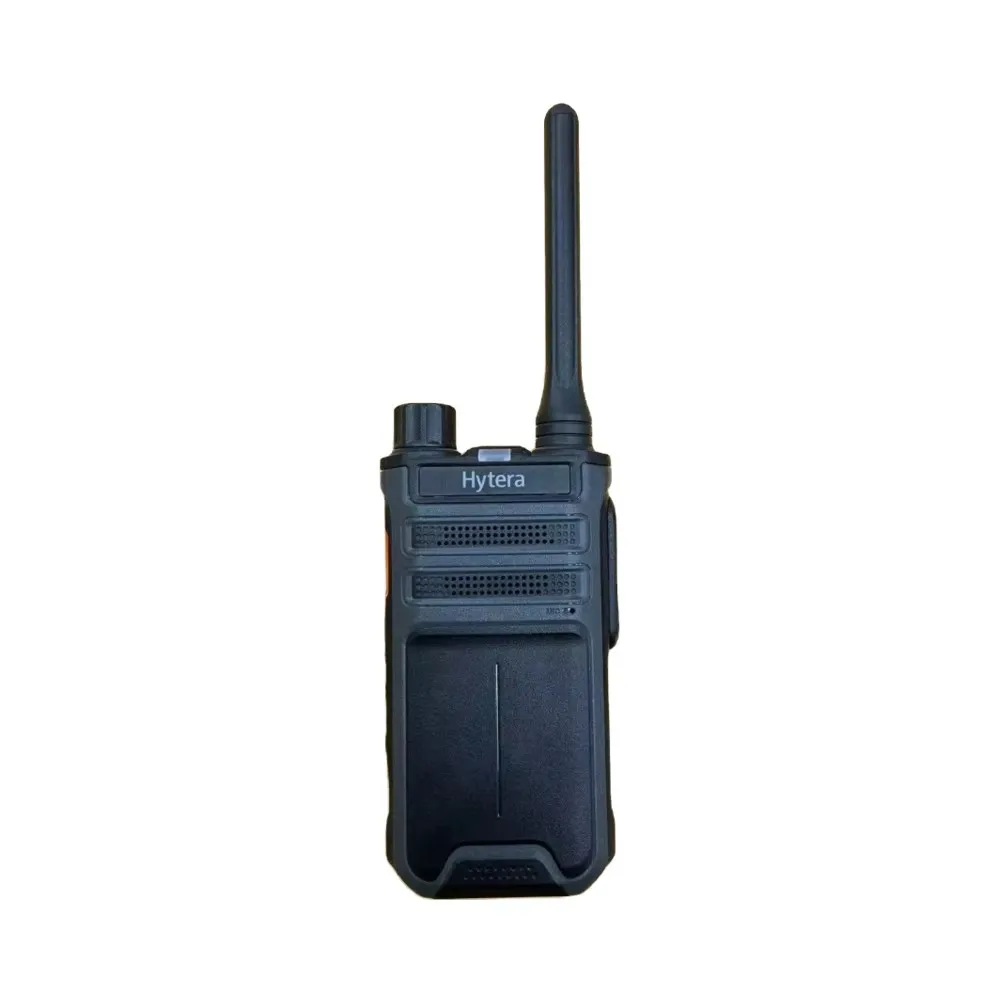

Hytera BP51X (BP515) High-Performance Digital Radio
- Available for standalone purchase
- Repeater-ready for site-wide coverageHow systems work
Need a complete system? We can help plan the radio and repeater quantities for your site.
Plan a system →Buy the Hytera BP51X (BP515) High-Performance Digital Radio as a single unit or in bulk. Wholesale pricing, MOQ (10 Set) and DAP/DDP are confirmed on quotation for your destination; batteries, chargers and audio accessories for this model are listed with it.
Key Facts
- Model
- BP515
- Brand
- Hytera
- Price band
- On quotation
- Minimum order quantity
- 10 Set
- Lead time
- 3-10 days
- Shipping terms
- DAP/DDP
Technical Specifications
- / IP54
- / 12 h battery
- / UHF 350-400 MHz
Manufacturer document references — confirm the applicable regional version
| Field | Value |
|---|---|
| Frequency (UHF) | 350-400 MHz; 400-470 MHz |
| Frequency (VHF) | 136-174 MHz |
| Channel spacing | 12.5 kHz/20 kHz/25 kHz |
| RF power output | VHF 5 W / 1 W; UHF 4 W / 1 W |
| Frequency stability | +/-0.5 ppm |
| Digital sensitivity (5% BER) | 0.18 uV |
| Analogue sensitivity (12 dB SINAD) | 0.18 uV |
| Adjacent channel selectivity | TIA-603: 60 dB @12.5 kHz, 70 dB @20/25 kHz; ETSI: 60 dB @12.5 kHz, 70 dB @20/25 kHz |
| Rated audio output | 1 W |
| Battery life (5/5/90 duty cycle, high TX power) | Analogue: 12 h (1500 mAh), 16 h (2000/2200 mAh); Digital: 16 h (1500 mAh), 21 h (2000/2200 mAh) |
| Dimensions (H x W x D) | 115 x 55 x 29.5 mm |
| Weight | 210 g (with antenna & battery) |
| Ingress protection | IP54 (IEC60529-IP54) |
| Operating temperature | -30 C to +60 C (radio only; battery -20 C) |
| Digital protocol | ETSI-TS102 361-1, -2, -3 |
| Vocoder | AMBE+2 |
| MIL-STD | MIL-STD-810G (humidity, shock & vibration) |
| Warranty | 24 months (seller warranty) |
Official sources disagree on: Channel capacity; Battery options. Those fields are deliberately not published rather than picking one value. Every other value is taken from the manufacturer documents listed in specSource. Warranty is RadioSysHub's own 24-month seller warranty, not the manufacturer's.
Transcribed from the manufacturer documents above; not an independently verified test report. Confirm the regional variant on your quotation.
Product & Ordering FAQ
Is the Hytera BP51X (BP515) High-Performance Digital Radio an original Hytera product?
Every BP51X/BP515 we ship is brand-new in sealed packaging, and the serial numbers are listed on your quotation so they can be checked with Hytera.
What information should I include in a bulk quote?
For BP51X/BP515, send the quantity and destination country. MOQ is 10 Set, 3-10 days lead time; include your frequency grid and codeplug requirements if you need programming.
What does DDP shipping cover for my region?
DDP covers freight, clearance and import taxes to the destinations confirmed on your BP51X/BP515 quotation. This listing ships DAP/DDP with 3-10 days lead time; see Shipping for supported markets and DAP alternatives.
What is the Frequency (UHF) for the Hytera BP51X (BP515) High-Performance Digital Radio?
350-400 MHz; 400-470 MHz
What is the Frequency (VHF) for the Hytera BP51X (BP515) High-Performance Digital Radio?
136-174 MHz
