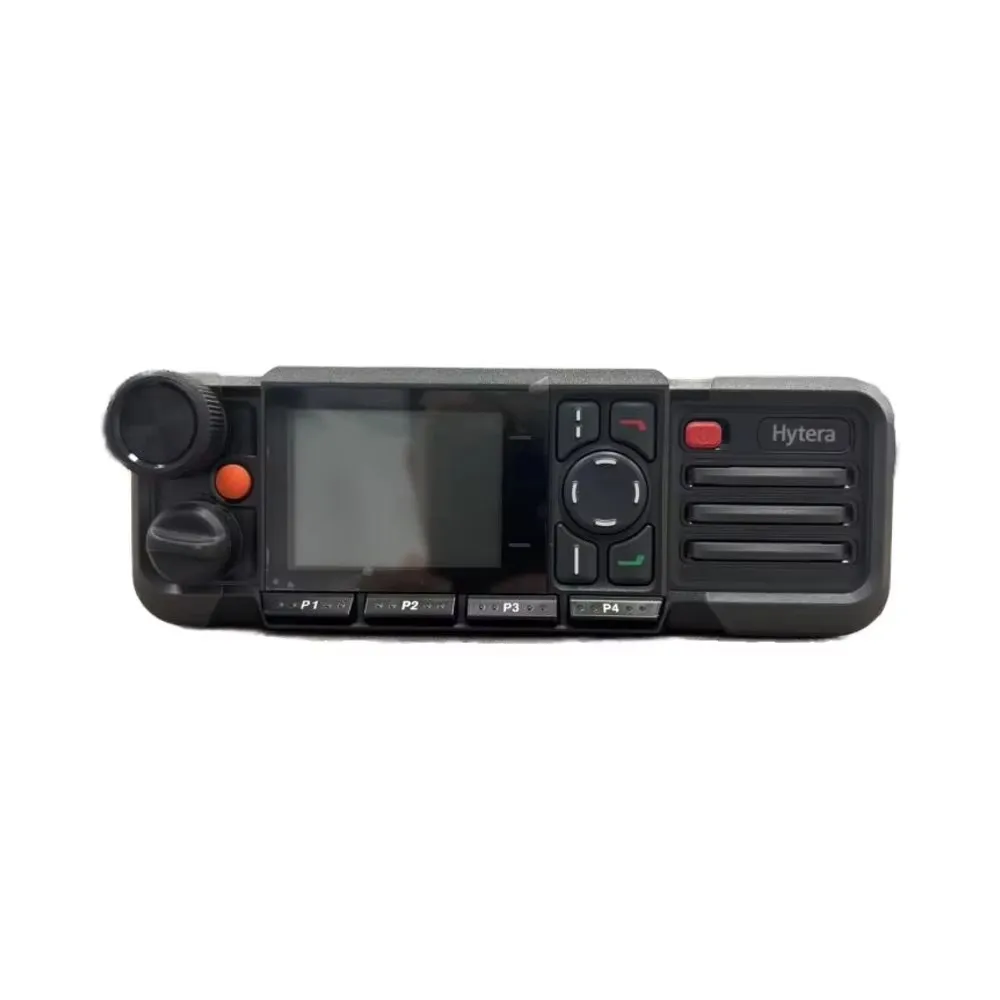

Hytera HM785 (HM78X) Next-Generation Digital Mobile Radio
- Available for standalone purchase
- Repeater-ready for site-wide coverageHow systems work
Need a complete system? We can help plan the radio and repeater quantities for your site.
Plan a system →Buy the Hytera HM785 (HM78X) Next-Generation Digital Mobile Radio as a single unit or in bulk. Wholesale pricing, MOQ (10 Set) and DAP/DDP are confirmed on quotation for your destination; batteries, chargers and audio accessories for this model are listed with it.
Key Facts
- Model
- HM785
- Brand
- Hytera
- Price band
- On quotation
- Minimum order quantity
- 10 Set
- Lead time
- 3-10 days
- Shipping terms
- DAP/DDP
Technical Specifications
- / IP54
- / 1,024 channels
- / VHF 136-174 MHz
- / DMR digital
Manufacturer document references — confirm the applicable regional version
| Field | Value |
|---|---|
| Frequency (VHF/UHF) | VHF 136-174 MHz; UHF 350-470 MHz (EU page). EN page additionally lists UHF 450-527 MHz and UHF5 806-825 / 851-870 / 896-902 / 935-941 MHz |
| RF power output (high/low) | Low: UHF 1-25 W, VHF 5-25 W; high: UHF 1-45 W, VHF 5-50 W |
| Channel capacity | 1024 channels, 64 zones (256 channels per zone) |
| Channel spacing | 12.5 / 20 / 25 kHz |
| Analogue sensitivity (12 dB SINAD) | 0.16 uV typical; 0.18 uV max |
| Digital sensitivity (5% BER) | 0.18 uV |
| Adjacent channel selectivity | ETSI 60 dB @ 12.5 kHz, 70 dB @ 20/25 kHz; TIA-603 60 dB @ 12.5 kHz, 70 dB @ 20/25 kHz |
| Intermodulation | ETSI 65 dB @ 12.5/20/25 kHz; TIA-603 70 dB @ 12.5/20/25 kHz |
| Rated audio output | 3 W internal (8 ohm); 7.5 W external (8 ohm); max 8 W internal, 20 W external |
| Dimensions H x W x D | 61.5 x 177 x 179 mm |
| Weight | 1520 g |
| Ingress protection | IP54 |
| Digital protocol | DMR ETSI TS 102 361-1, -2, -3; AMBE+2 vocoder |
| Encryption | Not published by the manufacturer |
| MIL-STD | MIL-STD-810G |
| Operating temperature | -30 C to +60 C |
| GPS | GPS receiver integrated (accuracy <5 m, cold start <1 min, hot start <10 s) |
| Bluetooth | Bluetooth 5.0 BLE + EDR (hardware option) |
conflict: hytera.com/eu HM785 page = VHF 136-174 MHz and UHF 350-470 MHz; hytera.com/en HM78X page = UHF 350-470 MHz and 450-527 MHz plus UHF5 806-825 (TX only) / 851-870 / 896-902 (TX only) / 935-941 MHz
Transcribed from the manufacturer documents above; not an independently verified test report. Confirm the regional variant on your quotation.
Product & Ordering FAQ
Is the Hytera HM785 (HM78X) Next-Generation Digital Mobile Radio an original Hytera product?
Every HM785/HM78X we ship is brand-new in sealed packaging, and the serial numbers are listed on your quotation so they can be checked with Hytera.
What information should I include in a bulk quote?
For HM785/HM78X, send the quantity and destination country. MOQ is 10 Set, 3-10 days lead time; include your frequency grid and codeplug requirements if you need programming.
What does DDP shipping cover for my region?
DDP covers freight, clearance and import taxes to the destinations confirmed on your HM785/HM78X quotation. This listing ships DAP/DDP with 3-10 days lead time; see Shipping for supported markets and DAP alternatives.
What is the Frequency (VHF/UHF) for the Hytera HM785 (HM78X) Next-Generation Digital Mobile Radio?
VHF 136-174 MHz; UHF 350-470 MHz (EU page). EN page additionally lists UHF 450-527 MHz and UHF5 806-825 / 851-870 / 896-902 / 935-941 MHz
What is the RF power output (high/low) for the Hytera HM785 (HM78X) Next-Generation Digital Mobile Radio?
Low: UHF 1-25 W, VHF 5-25 W; high: UHF 1-45 W, VHF 5-50 W
