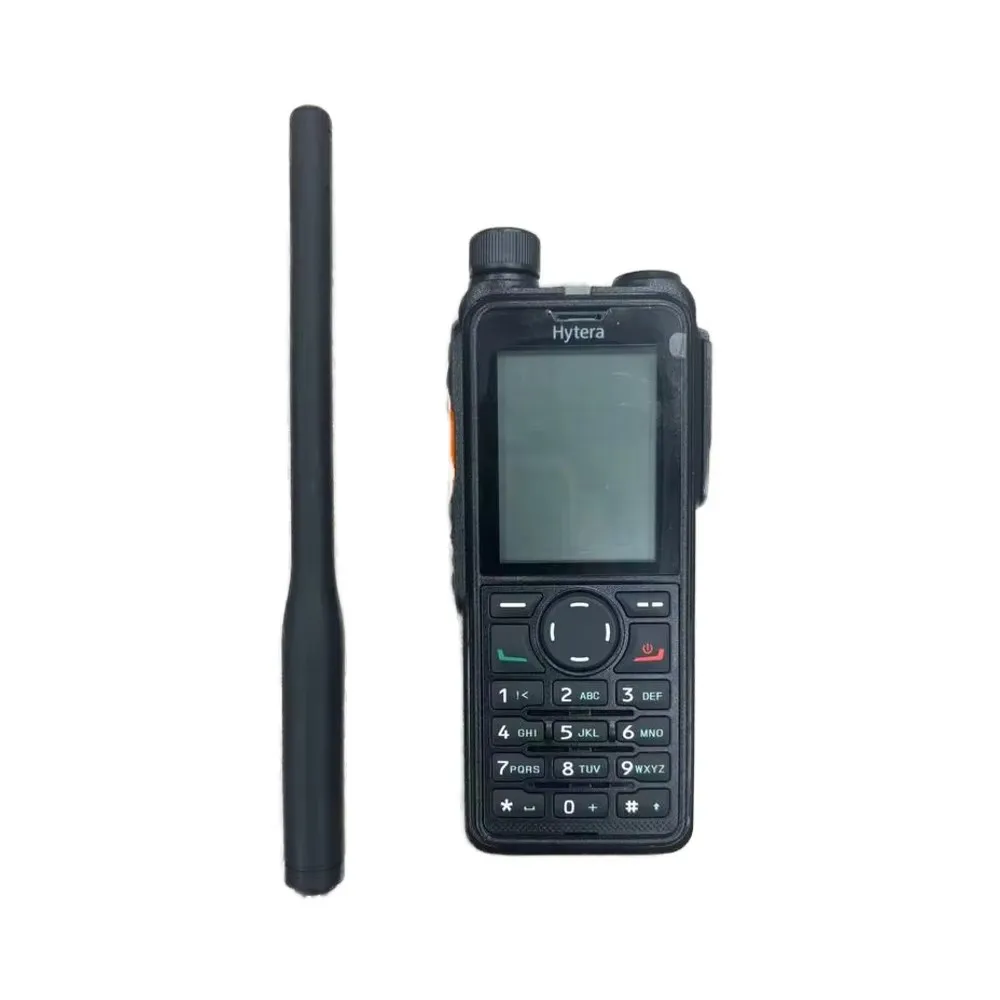

Hytera HP785/
- Available for standalone purchase
- Repeater-ready for site-wide coverageHow systems work
Need a complete system? We can help plan the radio and repeater quantities for your site.
Plan a system →Buy the Hytera HP785/HP788/HP789 (HP78X) Professional Digital Portable Radio as a single unit or in bulk. Wholesale pricing, MOQ (10 Set) and DAP/DDP are confirmed on quotation for your destination; batteries, chargers and audio accessories for this model are listed with it.
Key Facts
- Model
- HP785
- Brand
- Hytera
- Regional equivalents
- PD785 Alternative / PD985 Upgrade
- Price band
- On quotation
- Minimum order quantity
- 10 Set
- Lead time
- 3-10 days
- Shipping terms
- DAP/DDP
Technical Specifications
- / DMR Digital
- / Tactile Keypad
- / Crystal Audio
Manufacturer document references — confirm the applicable regional version
| Field | Value |
|---|---|
| Frequency (UHF) | 350-470 MHz; 450-527 MHz; 806-825 MHz (TX only), 851-870 MHz (TX & RX), 896-902 MHz (TX only), 935-941 MHz (TX & RX) |
| Frequency (VHF) | 136-174 MHz |
| Channel capacity | 1024 |
| Channel spacing | 12.5 kHz/20 kHz/25 kHz |
| RF power output | UHF 4 W high / 1 W low; VHF 5 W high / 1 W low |
| Frequency stability | +/-0.5 ppm |
| Digital sensitivity (5% BER) | 0.18 uV |
| Analogue sensitivity (12 dB SINAD) | 0.16 uV (typical); 0.18 uV |
| Adjacent channel selectivity | TIA-603: 60 dB @12.5 kHz, 70 dB @20/25 kHz; ETSI: 60 dB @12.5 kHz, 70 dB @20/25 kHz |
| Rated audio output | 0.5 W |
| Battery options | 2400 mAh Li-polymer (standard); 3000 mAh Li-polymer (optional) |
| Battery life (5/5/90 duty cycle, high TX power) | 2400 mAh: 24 h (GNSS off) / 20 h (GNSS on); 3000 mAh: 30 h (GNSS off) / 25 h (GNSS on) |
| Dimensions (H x W x D) | 132 x 55 x 29.5 mm (2400 mAh); 132 x 55 x 37.5 mm (3000 mAh) |
| Weight | 310 g (2400 mAh); 345 g (3000 mAh) |
| Ingress protection | IP66/IP68 |
| Operating temperature | -30 C to +60 C |
| Vocoder | AMBE+2 |
| MIL-STD | MIL-STD-810 C/D/E/F/G |
| Warranty | 24 months (seller warranty) |
Every other value is taken from the manufacturer documents listed in specSource. Warranty is RadioSysHub's own 24-month seller warranty, not the manufacturer's.
Transcribed from the manufacturer documents above; not an independently verified test report. Confirm the regional variant on your quotation.
Product & Ordering FAQ
Is the Hytera HP785/HP788/HP789 (HP78X) Professional Digital Portable Radio an original Hytera product?
Every HP785/HP788/HP789/HP78X we ship is brand-new in sealed packaging, and the serial numbers are listed on your quotation so they can be checked with Hytera.
What information should I include in a bulk quote?
For HP785/HP788/HP789/HP78X, send the quantity and destination country. MOQ is 10 Set, 3-10 days lead time; include your frequency grid and codeplug requirements if you need programming.
What does DDP shipping cover for my region?
DDP covers freight, clearance and import taxes to the destinations confirmed on your HP785/HP788/HP789/HP78X quotation. This listing ships DAP/DDP with 3-10 days lead time; see Shipping for supported markets and DAP alternatives.
What is the Frequency (UHF) for the Hytera HP785/HP788/HP789 (HP78X) Professional Digital Portable Radio?
350-470 MHz; 450-527 MHz; 806-825 MHz (TX only), 851-870 MHz (TX & RX), 896-902 MHz (TX only), 935-941 MHz (TX & RX)
What is the Frequency (VHF) for the Hytera HP785/HP788/HP789 (HP78X) Professional Digital Portable Radio?
136-174 MHz
